Robot series
Robot body introduction

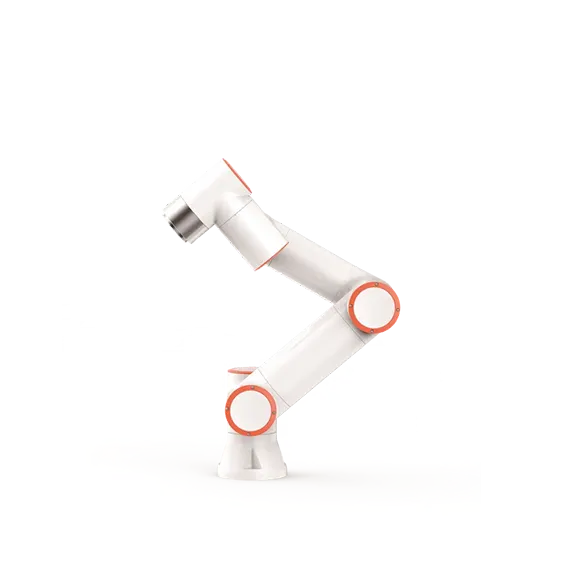

ROBOT MODEL - FR3-WML
FR3-WML
| Payload (kg) | 3kg |
| Weight (kg) | 11kg |
| Reach (mm) | 922mm |
| Degrees of freedom | 6 |
| End-effector Rotation Angle | ±360° |
Product features
Lightweight Design
The FR3-WMS weighs only 10.5 kg, and the FR3-WML weighs 11 kg. The lightweight design allows foreasy transportation by a single person, enabling quick deployment to different work areas and improving work efficiency.
Efficient and Versatile
The end-effect or features360°rotation, allowing it toreachthe workpiece at any angle, significantly improving work precision and flexibility.
Flexible End-Effector Control
With its compact size and high flexibility, it is suitablefor various complex working environments.
*FAIRINO offers an optional 36-meter heavy-duty extension cable.
Applicable welding scenarios
- Mechanical manufacturing
- Shipbuilding
- Metal processing
- Electronic product manufacturing
- Automotive parts production

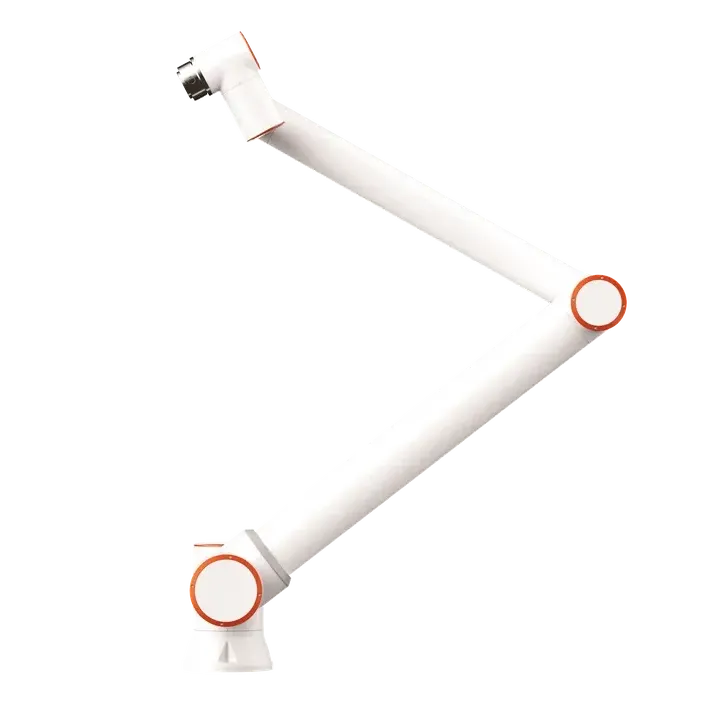

ROBOT MODEL - FR5-WML
FR5-WML
| Payload (kg) | Rated Load 5kg |
| Weight (kg) | 44kg |
| Reach (mm) | 1900mm |
| Degrees of freedom | 6 |
| End-effector Rotation Angle | ±360° |
Product features
Extended Reach&Wide Coverage
The end effect or enables360°rotation, easily handling welding tasks at various complex angles and ensuring welding quality.
Flexible End-Effector Capability
With a reach of 1900 mm, this model offers a 51% increase compared with theFR5 of the samepayload. It eliminates the need for frequent re positioning of the robot base-one installation can cover a much larger working area, making it ideal for welding large workpieces.
Applicable welding scenarios
- Shipbuilding
- Heavy Machinery and Equipment Manufacturing
- Construction steel structures

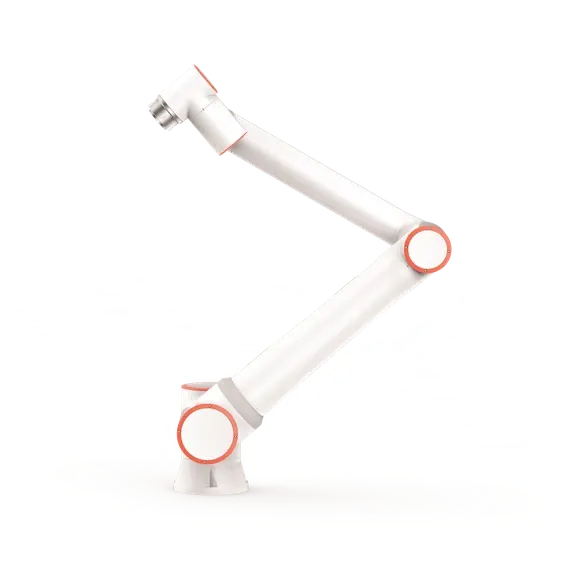

ROBOT MODEL FR10
FR10 360
| Payload (kg) | Rated Load 10kg, Maximum Load 14kg |
| Weight (kg) | 40kg |
| Reach (mm) | 1400mm |
| Degrees of freedom | 6 |
| End-effector Rotation Angle | ±175°(Optional ±360°) |
Product features
Wider Working Range
With an arm span of up to 1.4 meters, it meets industrial welding robot standards, significantly expanding the working coverage area.
Efficient Multi-Station Welding
It can easily operate across different workstations, enabling continuous and efficient welding operations, significantly enhancing production line automation and efficiency.
Safe and Efficient
It can share workspace with humans without additional safety barriers, supporting drag-and-teach and graphical programming, greatly lowering the operational threshold and improving work efficiency.
Applicable scenarios
Mobile welding
- Shipbuilding
- Bridge Construction
- Building Steel Structure
Multi-variety and low-volume welding
- Automotive Manufacturing
- Aerospace
High-precision welding
- Metal Furniture Manufacturing
- Hardware Products Processing
Get in touch with us and we’ll be happy to discuss your requirements.
